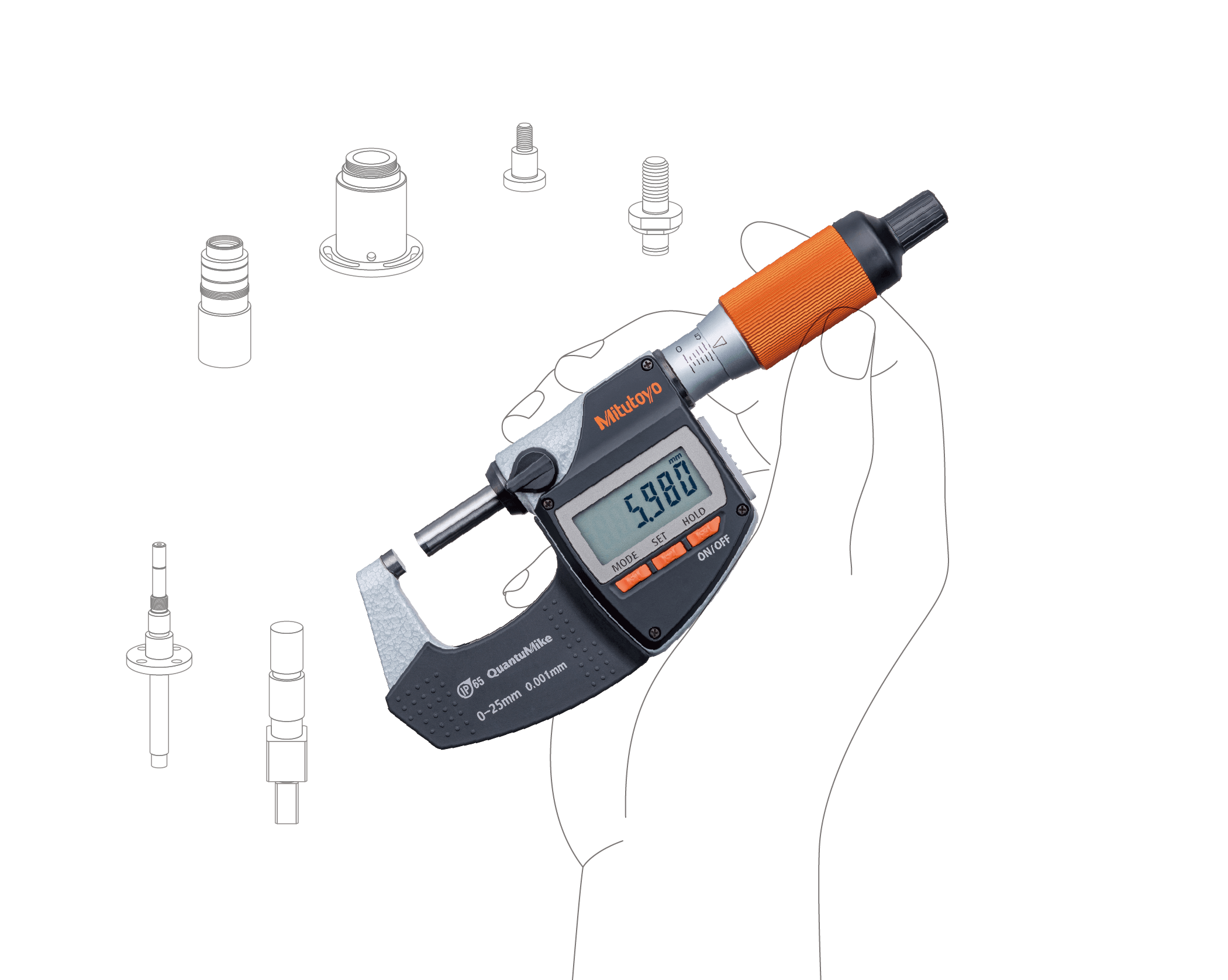

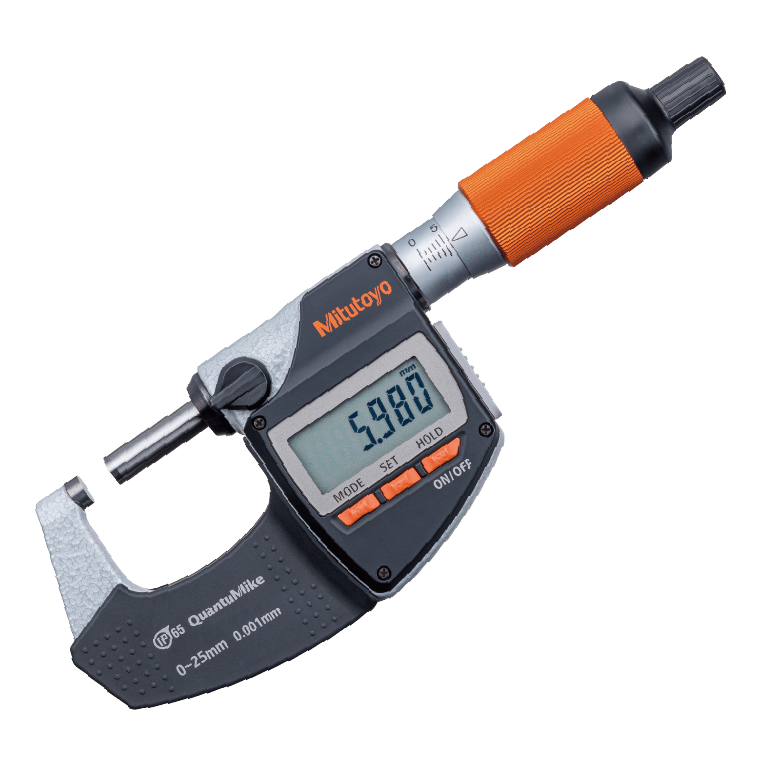

QuantuMike MD-E
3 Key Points
1
TECHNOLOGY
High speed
& High accuracy
High-speed movement for faster measurement
Unlike a typical micrometer with a 0.5 mm screw lead, the thimble moves the spindle 2.0 mm in a single rotation, allowing for rapid measurement.
Reduced
by Approx.
99%*
Ratchet thimble mechanism
for stable measurement
The micrometer features a ratchet thimble mechanism that allows stable measurement to be performed, even when operated one-handed.
Ratcheting works with both the thimble and the speeder.
2
EASY OPERATION
Reliable
Approach speed
warning function
The approach speed warning function detects collisions with workpieces due to excessive speed.
Tolerance judgment and calculation functions
The micrometer determines whether the measurement value is within the upper and lower limits of tolerance and displays a tolerance judgment mark. The user can judge pass/failure at a glance. Also, using the calculation function, it is possible to calculate correction values for a processing machine from the measurement results.
Water-resistant and dust-resistant performance
The micrometer achieves protection level IP65 for water-resistant and dust-resistant performance. It can be used with confidence even at sites where it may be splashed by coolant liquid.
3
USABILITY
Easy to use
Supports bidirectional serial communication
In addition to Digimatic d1/d2 (output), support is also provided for Digimatic S1 (input/output) communication. Bidirectional serial communication enables easy setting and management of Digimatic gages.

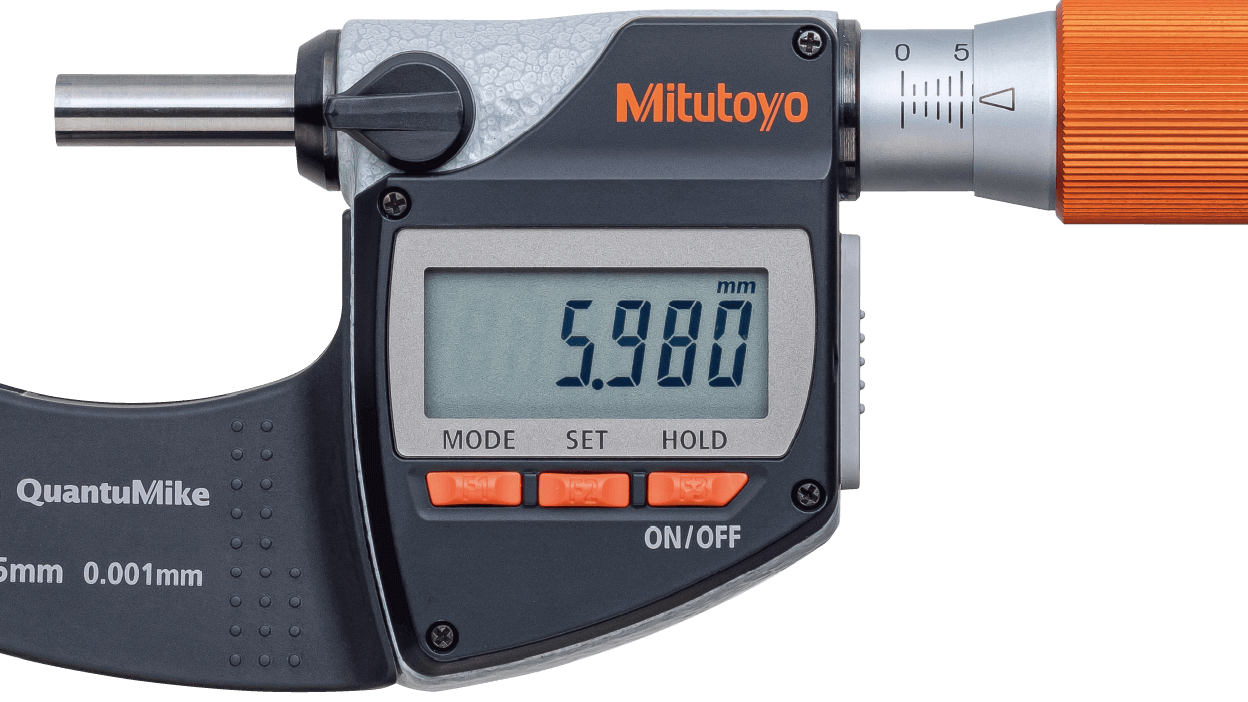

Large display
The display portion has been increased without enlarging the body of the unit itself. Measurement values and warning marks are now easier to see from any angle.
VOICE
Staff Impressions of the New QuantuMike
Mitutoyo Incoming Inspection Staff
Once you use it, you'll never go back!
Accuracy is important in inspection, but so is speed, due to the large number of parts involved. The high feed rate means inspections can be performed efficiently. The ratchet part is also easy to hold, making it easy to use even for beginners.
Mitutoyo Incoming Inspection Staff
With the approach speed warning function, anyone can perform accurate measurements!
Just as with the previous QuantuMike, inspections can be carried out efficiently, but with the addition of the approach speed warning function in the new model, aspects previously dependent on inspector experience are now mechanically regulated, reducing variability between inspectors. Moreover, if excessive measuring pressure is applied, a warning is issued, allowing anyone to take accurate measurements.
CONTACT
Please see the links below for catalog downloads, video, and product details.
